Simrad NSS 4 12 inch Chartplotter with US C-MAP Charts for SALE
$ 2,470.00
Brand: SimradShop the Simrad NSS 4 12 inch Chartplotter with US C-MAP Charts with US C-MAP DISCOVER X charts, bright hybrid-control display, eight-core processor and built-in GPS.

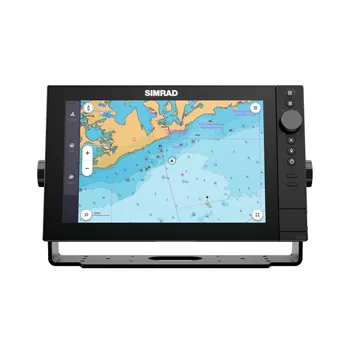

Simrad NSS 4 12 inch Chartplotter with US C-MAP Charts
The Simrad NSS 4 12-inch Chartplotter with US C-MAP Charts is a high-performance multifunction navigation display designed for offshore cruising, sportfishing, and fully networked marine systems. Its premium 12-inch glass-to-edge screen delivers 1280 × 800 resolution, 1,200-nit brightness, and wide viewing angles for excellent readability in bright sunlight.
Key Features
- Premium 12-inch glass-to-edge display
- 1280 × 800-pixel resolution
- Bright 1,200-nit screen
- Multitouch, keypad, and rotary-dial controls
- Configurable shortcut keys
- Fast Qualcomm eight-core processor
- C-MAP DISCOVER X North America charts
- Rapid chart rendering and autorouting
- Built-in 10 Hz multi-constellation GNSS
- Wi-Fi 5 connectivity
- High-speed Gigabit and standard Ethernet ports
- NMEA 2000 and USB connectivity
- Two front-facing microSD card slots
- Simrad HALO radar and autopilot integration
- Simrad RECON, Rhodan, and MotorGuide compatibility
- Networked sonar-module support
- IPX6 and IPX7 waterproof ratings
- Two-year limited warranty
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 12 inches |
| Display resolution | 1280 × 800 pixels |
| Brightness | 1,200 nits |
| Viewing angles | 80° top/bottom and left/right |
| Processor | Qualcomm eight-core |
| User interface | Multitouch, keypad and rotary dial |
| GPS | Built-in 10 Hz, 32-channel GNSS |
| Internal sounder | No |
| Network sonar | Compatible with S3100, S5100 and supported MFDs |
| Dimensions | 338.9 × 208.4 × 84.8 mm |
| Weight | 2.8 kg / 6.17 lb |
| Supply voltage | 12/24 V DC; 10–31.2 V operating range |
| Maximum consumption | 40 W |
| Waterproof rating | IPX6 and IPX7 |
| Connectivity | Wi-Fi 5, Ethernet, NMEA 2000 and USB |
| Card slots | Two microSD/SDHC slots |
| Cartography | C-MAP DISCOVER X North America |
| Warranty | Two years |
Package Includes
- Simrad NSS 4 12-inch chartplotter
- C-MAP DISCOVER X North America chart card
- NSS 4 protective sun cover
- Rear-mount kit
- Gimbal bracket and knobs
- Four-pin power cable
- Fuse holder
- Installation documentation
