Simrad NSS 4 10 inch Chartplotter with US C-MAP Charts for SALE
$ 1,690.00
Brand: SimradShop the Simrad NSS 4 10 inch Chartplotter with US C-MAP Charts with US C-MAP DISCOVER X charts, a bright hybrid-control display, fast eight-core processor and built-in GPS.

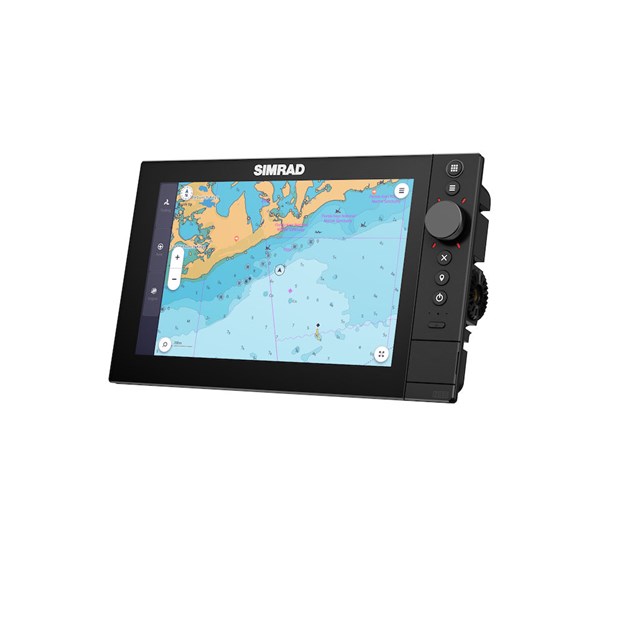

Simrad NSS 4 10 inch Chartplotter with US C-MAP Charts
The Simrad NSS 4 10-inch Chartplotter with US C-MAP Charts is a fast, highly customizable multifunction navigation display designed for cruising, offshore boating, and networked marine systems. Its premium 10-inch glass-to-edge display provides 1280 × 800 resolution, 1,200-nit brightness, and wide viewing angles for excellent readability in direct sunlight.
Key Features
- 10-inch glass-to-edge multitouch display
- 1280 × 800-pixel resolution
- Bright 1,200-nit screen
- Touchscreen, keypad, and rotary-dial controls
- Configurable shortcut key
- High-performance Qualcomm eight-core processor
- Fast chart rendering and automatic routing
- C-MAP DISCOVER X North America charts
- Built-in 10 Hz multi-constellation GNSS
- Dual front-facing microSD card slots
- Wi-Fi 5 and high-speed Ethernet networking
- NMEA 2000 connectivity
- Simrad HALO radar and autopilot integration
- Simrad RECON, Rhodan, and MotorGuide compatibility
- Support for CZone and Mercury integration
- Network-sonar compatibility
- IPX6 and IPX7 waterproof ratings
- Two-year limited warranty
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 10 inches |
| Display resolution | 1280 × 800 pixels |
| Brightness | 1,200 nits |
| Viewing angles | 80° top/bottom and left/right |
| Processor | Qualcomm eight-core |
| Interface | Multitouch, keypad and rotary dial |
| GPS | Built-in 10 Hz GNSS |
| Internal sounder | No |
| Sonar compatibility | S3100, S5100 or compatible networked MFD |
| Dimensions | 287.9 × 176.1 × 79.6 mm |
| Weight | 1.8 kg / 3.97 lb |
| Supply voltage | 12/24 V DC; 10–31.2 V operating range |
| Maximum consumption | 28 W |
| Waterproof rating | IPX6 and IPX7 |
| Connectivity | Wi-Fi 5, Ethernet, NMEA 2000 |
| Memory-card slots | Two microSD/SDHC |
| Cartography | C-MAP DISCOVER X North America |
Package Includes
- Simrad NSS 4 10-inch chartplotter
- C-MAP DISCOVER X North America chart card
- Protective sun cover
- Rear-mount kit
- Gimbal bracket and knobs
- Four-pin power cable and fuse holder
- Installation documentation
