B&G Triton2 Speed Depth Wired Wind Pack for SALE
$ 1,090.00
Brand: B&GBuy the B&G Triton2 Speed Depth Wired Wind Pack with color display, DST810 transducer, WS310 wind sensor and NMEA 2000 starter kit.

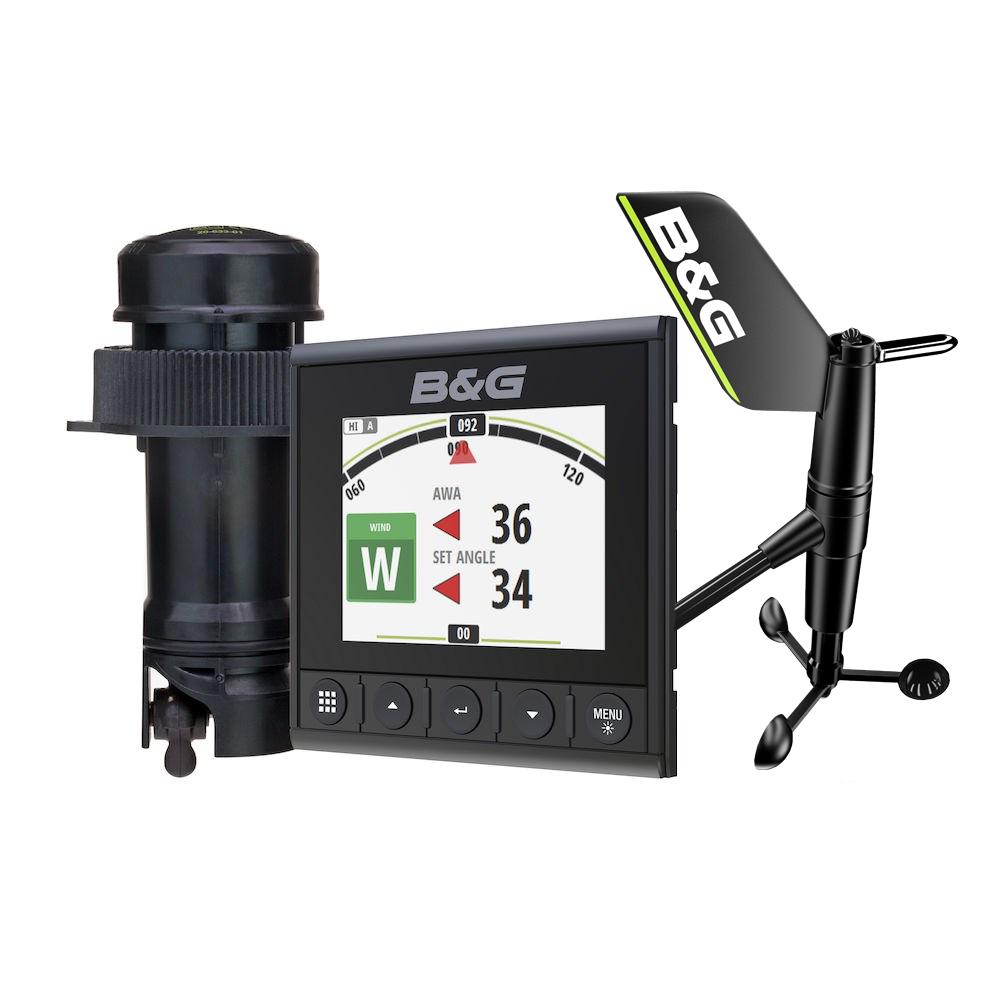

B&G Triton2 Speed Depth Wired Wind Pack
Monitor essential sailing information with the B&G Triton² Speed, Depth and Wired Wind Pack. This comprehensive instrument package combines a sunlight-readable Triton² display with accurate sensors for wind, boat speed, water depth and temperature.
Designed for cruising sailors and club racers, the system uses NMEA 2000 networking for simple installation and integration with compatible B&G chartplotters, autopilots, instruments and other marine electronics.
Triton² Digital Instrument Display
The Triton² display presents wind, speed, depth, heading, GPS, AIS and autopilot information on a clear 4.1-inch color screen. Its optically bonded construction prevents internal condensation, while transflective LCD technology provides excellent visibility in bright sunlight and at night.
Dedicated sailing pages include:
- SailSteer
- WindPlot
- Apparent and true wind information
- Boat and ground speed
- Depth and water temperature
- Heading and navigation data
- AIS-target information
- Autopilot status
- Race timer
- Configurable sailing-data pages
The low-profile display sits only approximately 8 mm proud of the mounting surface, reducing the risk of lines catching around the instrument.
WS310 Wired Wind Sensor
The included WS310 wired wind sensor provides fast, accurate wind-speed and wind-angle information. Its aerodynamic design is optimized to maintain dependable readings across different sailing angles and heel conditions.
The supplied WS310 interface converts the masthead sensor output for use on the vessel’s NMEA 2000 network. A 20-meter mast cable is included for installation.
DST810 Smart Multisensor
The DST810 combines three important measurements in one through-hull sensor:
- Water depth
- Boat speed through the water
- Water temperature
Its 235 kHz operating frequency helps reduce interference with other onboard sonar equipment. Bluetooth connectivity allows compatible calibration and configuration through the Airmar CAST application.
Expandable NMEA 2000 System
The included NMEA 2000 starter kit provides the basic components required to build a network. Once connected, Triton² data can be shared with compatible B&G Zeus and Vulcan chartplotters, autopilots and other NMEA 2000 equipment.
Adding a Triton² Pilot keypad and compatible autopilot computer allows the display to become part of a complete B&G sailing-autopilot system.
Key Features
- Complete speed, depth, temperature and wired-wind package
- 4.1-inch optically bonded color display
- Excellent sunlight and nighttime visibility
- 320 × 240-pixel screen resolution
- Dedicated SailSteer and WindPlot pages
- Customizable sailing-data screens
- WS310 high-precision wired wind sensor
- WS310 NMEA 2000 wind interface
- 20-meter mast cable included
- DST810 depth, speed and temperature sensor
- Bluetooth-enabled DST810 calibration
- NMEA 2000 certified
- NMEA 2000 starter kit included
- Displays compatible AIS and GPS information
- B&G autopilot integration ready
- Low-profile flush-mount design
- Physical waterproof controls
- Low power consumption
- IPX7 waterproof display
- Ideal for cruising and club racing
Technical Specifications
Triton² Display
| Specification | Details |
|---|---|
| Display size | 4.1 inches |
| Display type | Optically bonded transflective color LCD |
| Display resolution | 320 × 240 pixels |
| Aspect ratio | 4:3 |
| Controls | Waterproof keypad |
| Network connection | One NMEA 2000 Micro-C port |
| Typical power consumption | 1.4 W |
| Maximum power consumption | 1.8 W |
| Supply voltage | 10–16 V DC |
| Water-resistance rating | IPX7 |
| Dimensions | 4.6 × 4.5 × 1.4 inches |
| Weight | Approximately 0.7 lb |
| Mounting | Flush mount |
| Warranty | Two years |
DST810 Smart Transducer
| Specification | Details |
|---|---|
| Measurements | Depth, boat speed and water temperature |
| Installation type | Through-hull |
| Housing material | Plastic |
| Network output | NMEA 2000 |
| Operating frequency | 235 kHz |
| Maximum depth range | Up to approximately 330 ft |
| Speed range | Up to approximately 45 knots |
| Temperature measurement | Included |
| Calibration connectivity | Bluetooth Low Energy |
| Standard cable length | Approximately 20 ft |
| Self-closing valve | Included |
WS310 Wired Wind Sensor
| Specification | Details |
|---|---|
| Measurements | Wind speed and wind angle |
| Sensor type | Wired cup-and-vane masthead sensor |
| Installation location | Masthead |
| Interface | WS310 wired NMEA 2000 interface |
| Mast cable | 20 meters/65 feet |
| Sensor water resistance | IPX6/IPX7 |
| Operating voltage | 9–16 V DC |
| Data output | Wind data at up to 10 Hz |
Package Contents
- One B&G Triton² digital instrument display
- One DST810 depth/speed/temperature smart transducer
- One WS310 wired wind sensor
- One WS310 wired wind interface
- One 20-meter wind-sensor mast cable
- One NMEA 2000 backbone starter kit
- Display-mounting hardware
- Installation documentation
Professional installation is recommended for the through-hull transducer and masthead wind sensor. Confirm that the supplied plastic transducer housing is suitable for the vessel’s hull material.
