Kohler CH395-3041 Horizontal Command PRO Engine for SALE
$ 808,50
Brand: Kohler EnginesBuy the Kohler CH395-3041 Horizontal Command PRO Engine with electric and recoil start, an 18A charging system, key box, and 1-inch keyed shaft.

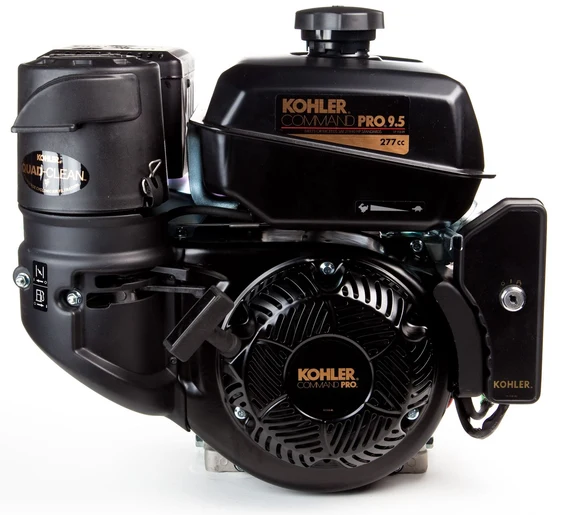

Kohler CH395-3041 Horizontal Command PRO Engine
The Kohler CH395-3041 Command PRO is a professional-grade horizontal-shaft engine designed for demanding commercial, industrial, agricultural, and construction equipment. Its 277cc four-stroke OHV design produces 9.5 gross horsepower and up to 13.9 lb-ft of torque, providing dependable power for pumps, pressure washers, compressors, generators, compactors, and other belt- or direct-drive applications.
Key Features
- 277cc professional-grade OHV engine
- 9.5 gross horsepower
- 13.9 lb-ft peak torque
- Recoil and 12V electric starting
- Key switch box included
- High-output 18-amp charging system
- 1″ × 3.49″ straight keyed PTO shaft
- Quad-Clean four-stage cyclonic air cleaner
- Oil Sentry low-oil protection
- Cast-iron cylinder liner
- Dual PTO and flywheel ball bearings
- Muffler, heat shield, and spark arrestor included
- Variable-speed manual throttle
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kohler / Rehlko |
| Product line | Command PRO |
| Model | CH395-3041 |
| Manufacturer part number | PA-CH395-3041 |
| UPC | 650531994691 |
| Engine type | Four-stroke OHV, single-cylinder |
| Shaft orientation | Horizontal |
| Displacement | 277cc |
| Gross power | 9.5 HP at 4,000 rpm |
| Peak torque | 13.9 lb-ft (18.8 Nm) at approximately 2,800 rpm |
| Bore × stroke | 3.1″ × 2.3″ (78 × 58 mm) |
| Compression ratio | 8.5:1 |
| Cooling system | Forced-air |
| Ignition | Electronic, RFI-compliant |
| Governor | Mechanical, variable speed |
| Starting system | Recoil and 12V electric start |
| Key switch | External key box included |
| Charging system | 18 amp |
| PTO shaft | Straight, keyed |
| Shaft dimensions | 1″ diameter × 3.49″ long |
| Keyway | 1/4″ |
| Shaft-end thread | 7/16″-20 UNF |
| Shaft rotation | Counterclockwise viewed from PTO end |
| PTO support | Dual ball bearings |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Lubrication | Splash lubrication |
| Oil protection | Oil Sentry low-oil sensor |
| Oil capacity | Approximately 1.16 US qt (1.1 L) |
| Recommended oil | SAE 10W-30 |
| Fuel | Unleaded gasoline |
| Fuel tank | Large-capacity metal tank with strainer |
| Fuel tank capacity | Approximately 6.5–7.1 L, depending on tank revision |
| Fuel shutoff | Included |
| Muffler | Included |
| Heat shield | Included |
| Spark arrestor | Included |
| Approximate dimensions | 15.9″ L × 16.8″ W × 16.7″ H |
| Approximate dry weight | 61.5 lb (27.8 kg) |
| Warranty | Three-year limited manufacturer warranty |
