Kohler CH440-3270 Horizontal Command PRO Engine for SALE
$ 876,70
Brand: Kohler EnginesBuy the Kohler CH440-3270 Horizontal Command PRO Engine with electric and recoil start, 3A charging, key box, and a 1-inch keyed shaft.

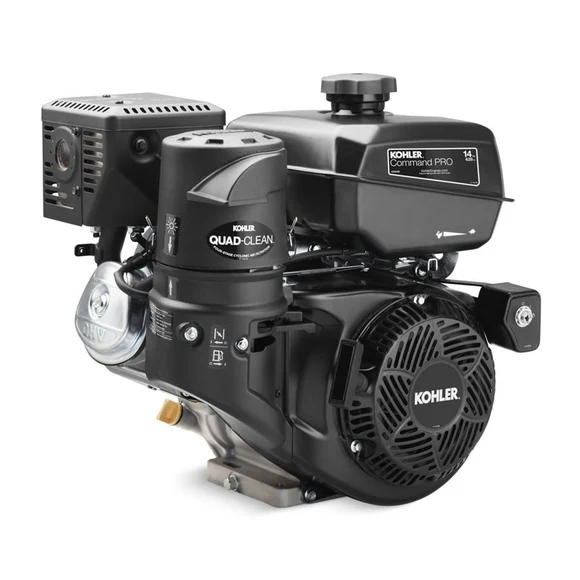

Kohler CH440-3270 Horizontal Command PRO Engine
The Kohler CH440-3270 Command PRO is a professional-grade horizontal-shaft engine engineered for demanding commercial, agricultural, and industrial equipment. Its 429cc single-cylinder OHV design delivers 14 gross horsepower and 22.7 lb-ft of peak torque, making it an excellent power source for pressure washers, pumps, compressors, concrete equipment, wood chippers, and other heavy-duty machinery.
Key Features
- Commercial-grade 429cc OHV engine
- 14 gross horsepower
- 22.7 lb-ft peak torque
- Electric and recoil starting
- Key switch box included
- 3-amp charging system
- 1″ × 3.49″ straight keyed PTO shaft
- Variable-speed operation
- Quad-Clean four-stage cyclonic air cleaner
- Oil Sentry low-oil shutdown
- Cast-iron cylinder liner
- Forged-steel crankshaft
- Dual PTO and flywheel ball bearings
- Muffler and heat shield included
- Replaces CH440-3021 and CH440-3113
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kohler / Rehlko |
| Product series | Command PRO |
| Model | CH440-3270 |
| Manufacturer part number | PA-CH440-3270 |
| UPC / GTIN | 885612770745 |
| Replaces | CH440-3021 and CH440-3113 |
| Engine type | Four-stroke OHV, single-cylinder |
| Shaft orientation | Horizontal |
| Displacement | 429cc (24.7 cu. in.) |
| Gross power | 14 HP |
| Certified power | 13.4 HP (10 kW) at 3,600 rpm |
| Peak torque | 22.7 lb-ft (30.8 Nm) |
| Bore × stroke | 3.5″ × 2.7″ (89 × 69 mm) |
| Compression ratio | 8.0:1 |
| Rated operating speed | 3,600 rpm |
| Cooling system | Forced-air |
| Ignition system | Electronic |
| Governor | Mechanical, variable speed |
| Starting system | 12V electric and recoil |
| Key switch | External key box included |
| Charging system | 3 amp |
| PTO shaft type | Straight and keyed |
| Shaft diameter | 1″ (25.4 mm) |
| Shaft length | 3.49″ (approximately 3-21/32″) |
| Keyway | 1/4″ |
| Shaft-end thread | 3/8″-24 UNF |
| Shaft rotation | Counterclockwise viewed from PTO side |
| PTO support | Dual ball bearings |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Lubrication system | Splash lubrication |
| Low-oil protection | Oil Sentry shutdown |
| Oil capacity | 1.4 US qt (1.3 L) |
| Recommended oil | SAE 10W-30 |
| Fuel | Unleaded gasoline |
| Fuel tank capacity | 7.5 US qt (7.1 L) |
| Fuel shutoff valve | Included |
| Throttle control | Manual, variable speed |
| Choke control | Manual |
| Muffler | Included |
| Approximate dimensions | 16.2″ L × 17.8″ W × 17.4″ H |
| Approximate dry weight | 72.8 lb (33 kg) |
| Warranty | Three-year limited manufacturer warranty |
