Briggs & Stratton 356447-3545-G1 Horizontal Vanguard Engine for SALE
$ 1.164,90
Brand: Briggs & Stratton EnginesShop the Briggs & Stratton 356447-3545-G1 Horizontal Vanguard Engine with electric start, 16-amp alternator and 1-1/8 x 4-inch shaft.

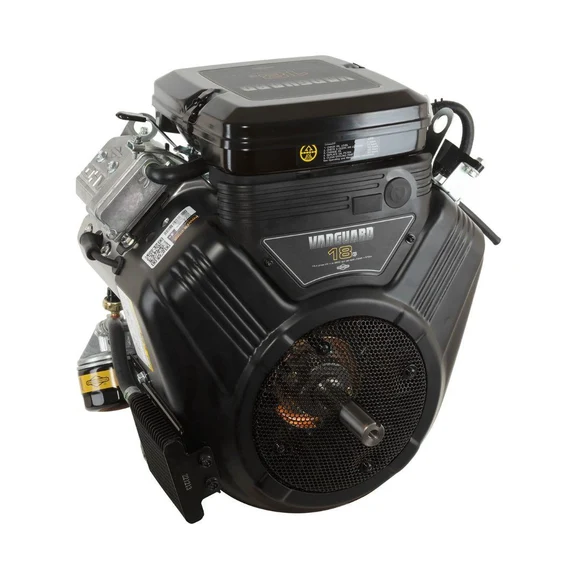

Briggs & Stratton 356447-3545-G1 Horizontal Vanguard Engine
The Briggs & Stratton 356447-3545-G1 Vanguard Horizontal Engine provides dependable commercial power for demanding equipment and repower applications. Its air-cooled 570cc OHV V-Twin configuration produces 18 gross horsepower while delivering smooth operation at a maximum governed speed of 3,150 RPM.
Key Features
- Commercial-grade Vanguard engine
- 18 gross HP and 570cc displacement
- Air-cooled OHV V-Twin design
- 12-volt electric starter
- 16-amp DC alternator
- Full-pressure lubrication
- Spin-on oil filter
- Integrated oil cooler
- Cast-iron cylinder sleeves
- Dual-Clean air filtration
- Float-feed carburetor
- Integrated fuel pump
- Remote throttle control
- Stub-shaft configuration
- Fuel tank not included
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 356447-3545-G1 |
| Engine Series | Vanguard |
| Engine Type | Four-stroke OHV V-Twin |
| Shaft Orientation | Horizontal |
| Gross Power | 18 HP |
| Displacement | 570cc |
| Bore | 2.83 in |
| Stroke | 2.76 in |
| Crankshaft | 1-1/8 in x 4 in |
| Shaft Type | Straight keyed shaft |
| Keyway | 1/4 in square |
| Crankshaft End | Drilled and tapped 7/16-20 |
| Starting System | 12-volt electric start |
| Charging System | 16-amp DC alternator |
| Maximum Speed | 3,150 RPM |
| Lubrication | Full pressure |
| Oil Filter | Spin-on filter |
| Oil Cooler | Included |
| Oil Capacity | 48 fl oz / 1.5 qt |
| Fuel Pump | Included |
| Fuel Tank | Not included |
| Throttle | Remote |
| Approximate Weight | 94.7 lb |
| Muffler | Confirm with seller |
